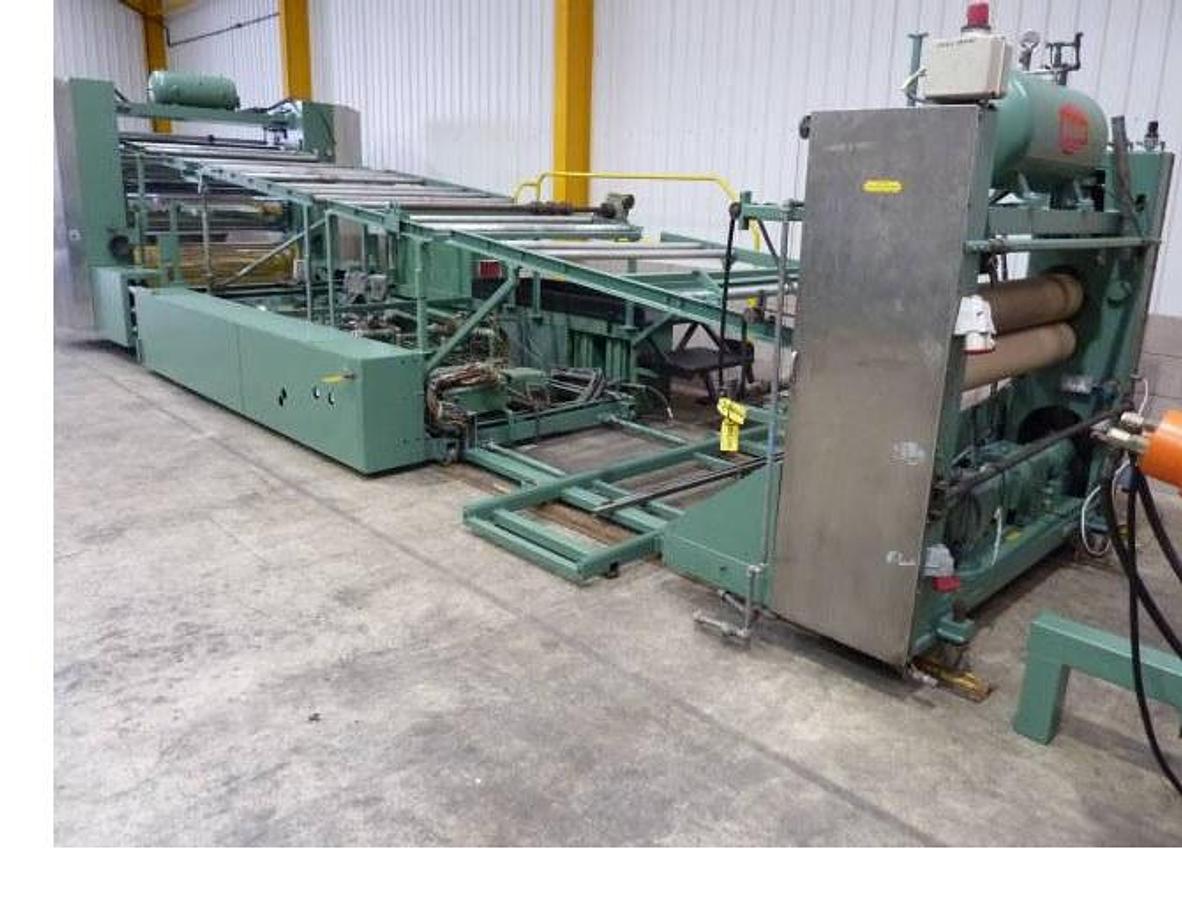

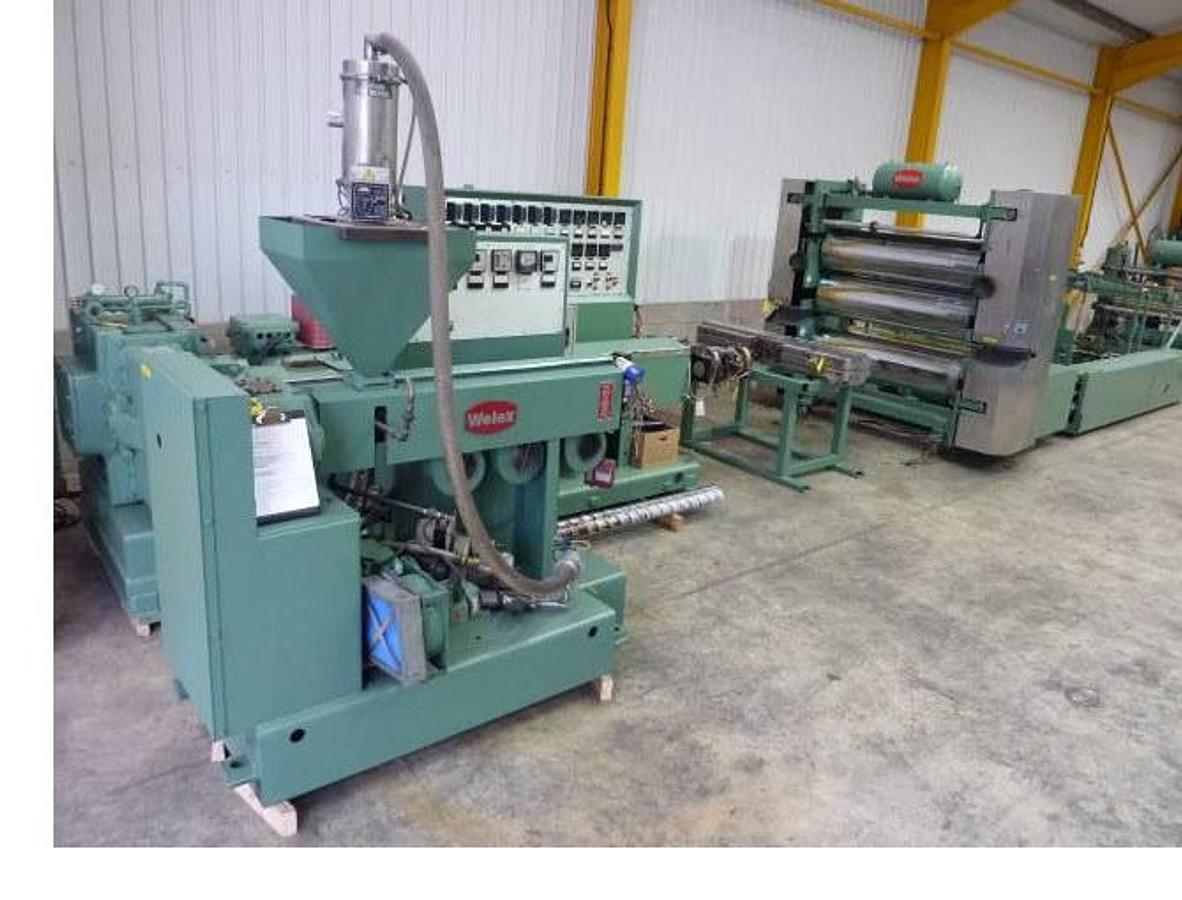

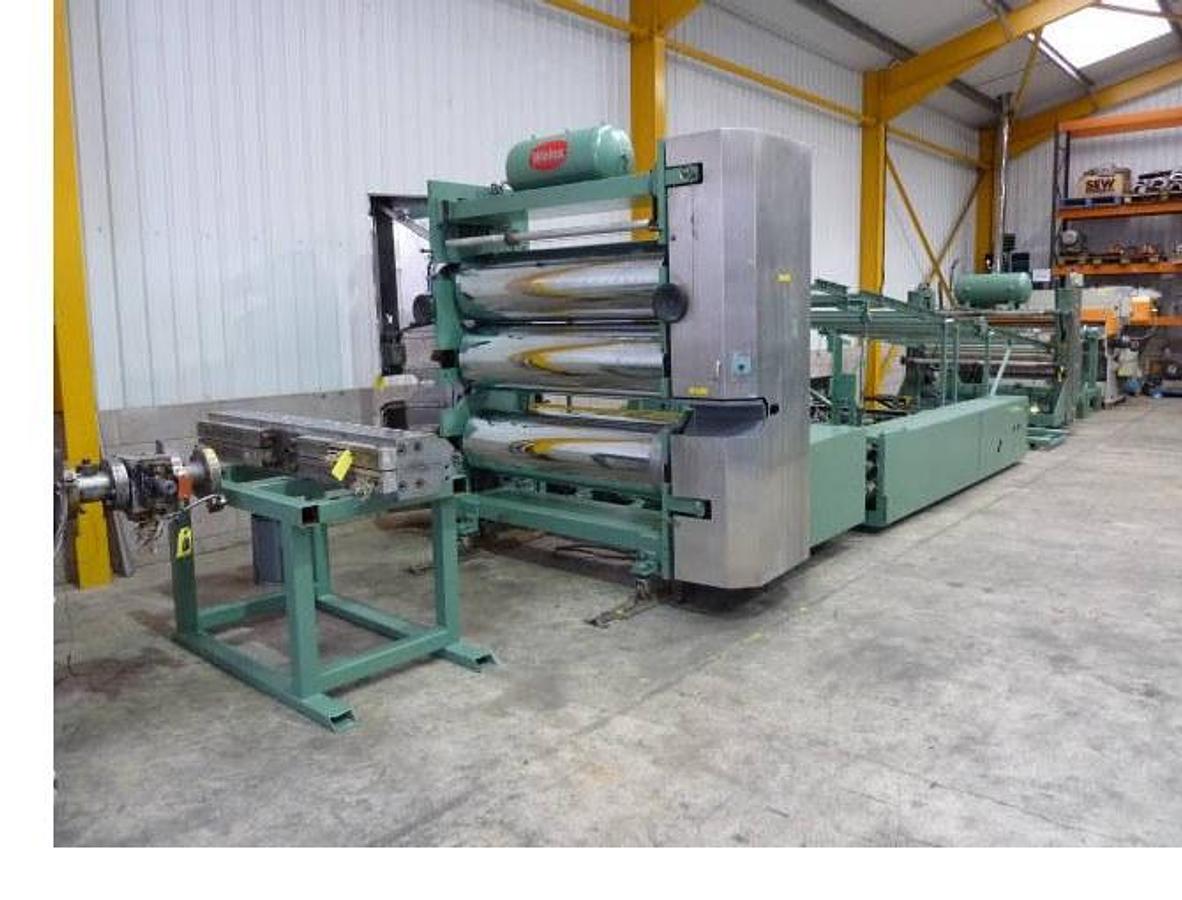

1650mm Welex extrusion line, 90mm Welex extruder, Gear pump, 1500mm die, 1650mm 3 roll vertical stack, pump group, haul off, Guillotine or winder

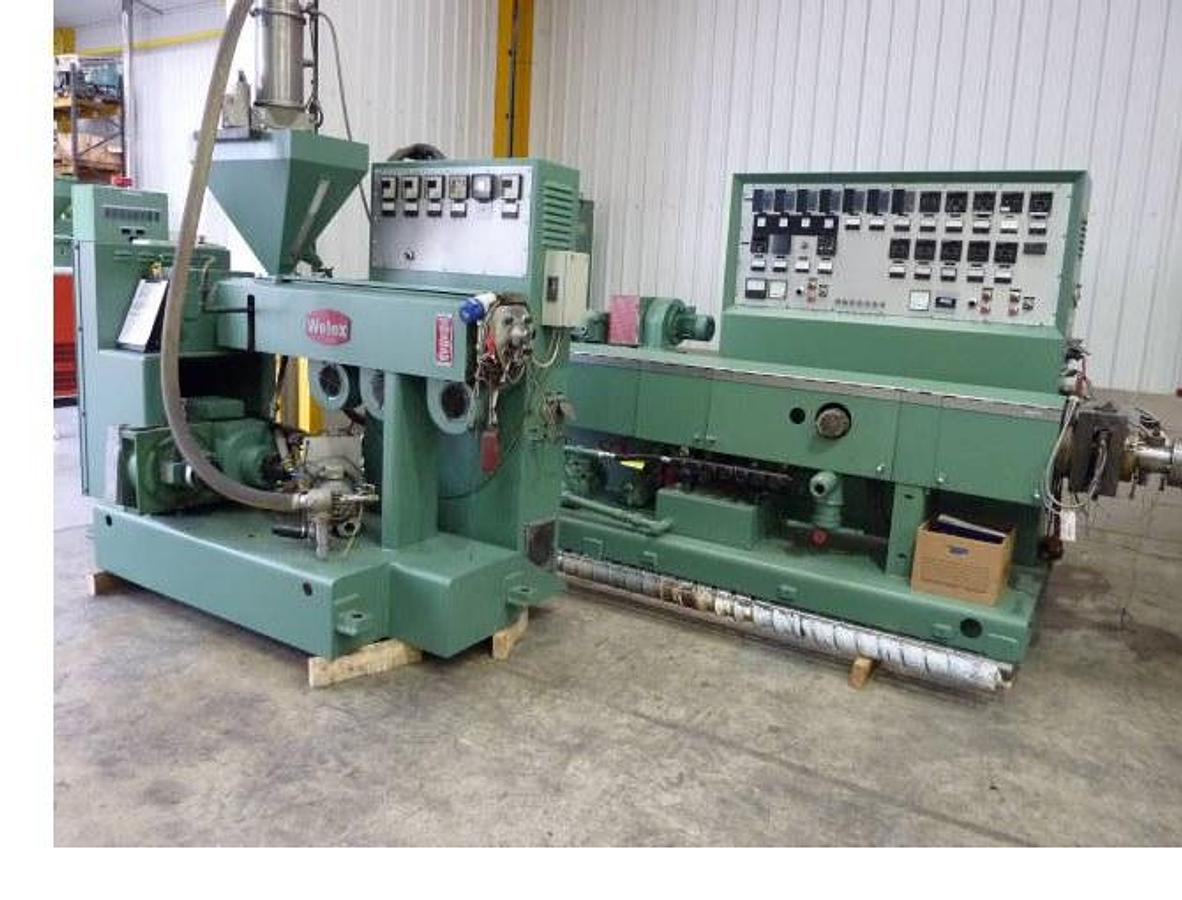

1650mm Welex extrusion line, 90mm Welex extruder, Gear pump, 1500mm die, 1650mm 3 roll vertical stack, pump group, haul off, Guillotine or winder 90mm Welex single screw extruder. 30D. Water cooled, electrically heated barrel. Vented. 150hp dc motor,low boy frame,Lufkin change gear unit Spare Barrier screw, hydraulic lantern slide screen changer with bolt throttle device Maag 56/56 gear pump with DC motor, reduction gearbox and LCI pressure control panel ABA co extrusion block. Static mixer with Welex removable plate coextrusion block 1650mm wide x 450mm dia rollers. Welex model 18x65 RHSL 1987 3hp reliance D/C motor with 4 speed selector gearbox for wide speed variation, Spare Chrome roll! Pneumatic nip clamp, wedge type nip adjustment. Welex 3 zone pump group each with immersion heaters, Baldor pumps, immersion heaters, pump and Proportional valves Welex downstream control panel with Mentor 11 thyrister drives and operators controls 1650 x200mm Welex 2 roll rubber covered hauloff unit with pneumatic clamp, reduction gearbox inline with 4 speed multispeed gearbox and DC drive motor. 1600mm Fasti Guilotine (Simple maier hydraulic winder with fixed shafts OPTION TBC) Note this machine can be offered with either Thin sheet die and a Winder //or Thick sheet die and Guilotine AT THE QUOTED PRICE
