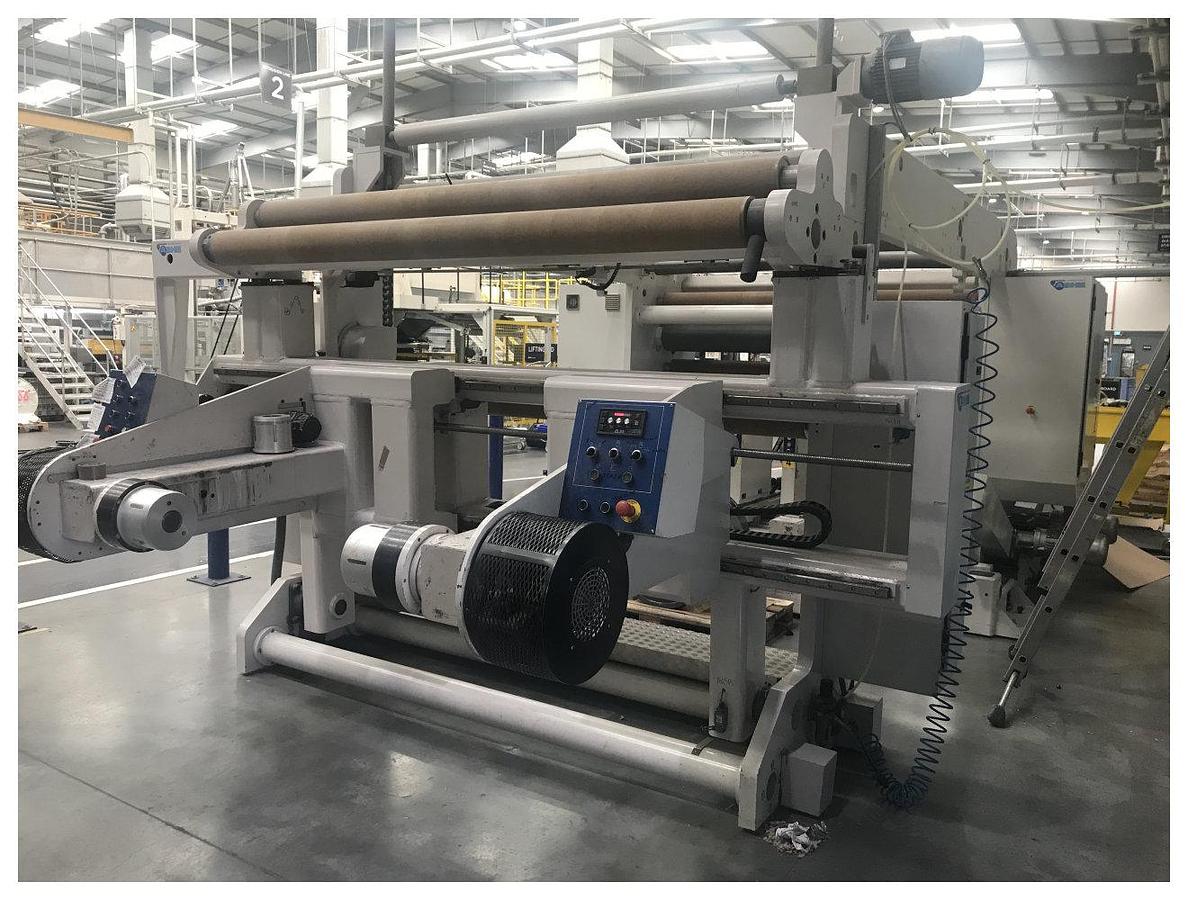

2030mm wide Ashe slitter rewinder with max mill roll of 1200mm. 450mpm max speed 254mm minimum slit. Shaftless unwind. Centre/Centre surface rewind 2008

2030mm wide Ashe slitter rewinder with max mill roll of 1200mm. 450mpm max speed 254mm minimum slit. Shaftless unwind. Centre/Centre surface rewind 2008Unwind Roll Weight: 2700Kg (6000 lbs) Unwind Diameter: 1220 mm Web width: 2030 mm Rewind diameter 1220 mm Rewind Weight: 2700 Kgs (6000 lbs) /pair arms) Machine Speed 450 mpm (1500 f/min) Minimum Slit: 254mm (10) min slit width Unwind: Shaftless, all electric Rewind: Individual Arm. Centre/Centre Surface Unwind core : 8 stand 6 Rewindcore: 6 Unwind tension range: 10 to 100 Kg. (4.5 - 45 lbs) Rewind tension range: 2 to 20 Kg (1 - 10 lbs) per station Slit width tolerance +/- 0.5 mm Guider movement: +/- 75 mm Guider correction rate: less than 25mm (1) /s Operating noise level Less than 70dB (A) Core inside diameter : 152.40 - 152.60mm Core Outside diameter : Not important, but minimum wall thickness of 10 mm recommended Core Quality : Good quality core with high resin content Core cutting to be burr free on inside diameter, with parallel ends See the line running here : https://youtu.be/cfnuzxK5eLs
